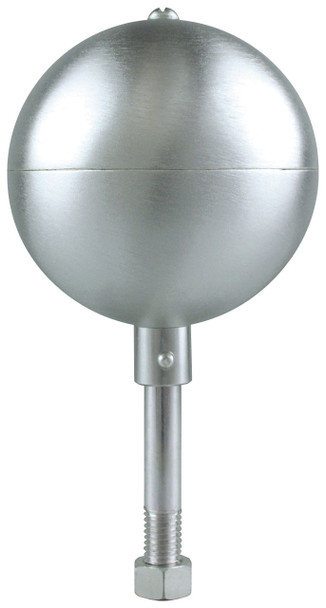

3 Inch Satin Aluminum Ball Flagpole Ornament 1/2 Inch-13NC Spindle Thread 330082

3 Inch Satin Flagpole Ball Ornament

A 3 inch satin ball ornament for the top of an outdoor flagpole, with 1/2 Inch-13NC spindle threading. Part number 330082, model SB103.

Will this size fit my flagpole?

Match the ball to the BUTT DIAMETER of your pole, not its height. The butt diameter is the width of the pole at the bottom, where it comes out of the ground or the shoe. The accepted rule across the flagpole trade is that the ball diameter should equal the butt diameter, and this 3 inch ball is sized for a 3 inch butt diameter — common on 15 to 20 foot residential poles.

If you are not sure, measure across the base of the pole with a tape or a set of calipers. Getting it right matters visually — a ball much smaller than the pole looks like a knob, and one much larger looks top-heavy.

Will it thread onto my pole?

This ornament screws into the flagpole truck, the fitting at the very top of the pole, on 1/2 Inch-13NC threading. Across the industry, 2 through 8 inch balls use 1/2 Inch-13NC and 10 and 12 inch balls use 5/8 Inch-11NC, so if you are replacing a ball of the same diameter the thread will almost always match. Unscrew the old ornament and check the stud before you order if you want to be certain.

If your pole has no truck drilled for an ornament, you will need a pole top adapter as well. The spindle is long enough to take a disc-style solar or LED flagpole light between the truck and the ball if you light your flag at night.

About the satin finish

Satin aluminum has a soft brushed look with no gloss. It is the quietest of the aluminum finishes and the one that disappears into the pole rather than drawing the eye, which is what most architects specify.

Best for a low-key finish that matches the pole rather than standing out.

Specifications

Total Spindle Length: 2-3/8 Inches (approximate)

Non-Threaded Part of the Spindle: 1-1/16 Inches

Spindle Threading Length: 1-1/4 Inches

Ball Size: 3 Inch Diameter

Recommended Pole Butt Diameter: 3 Inch

Spindle Threading: 1/2 Inch-13NC

Color: Satin

Material: Satin Aluminum

Model: SB103

Part Number: 330082

Item Weight: 0.3 lb

Made in the USA.
