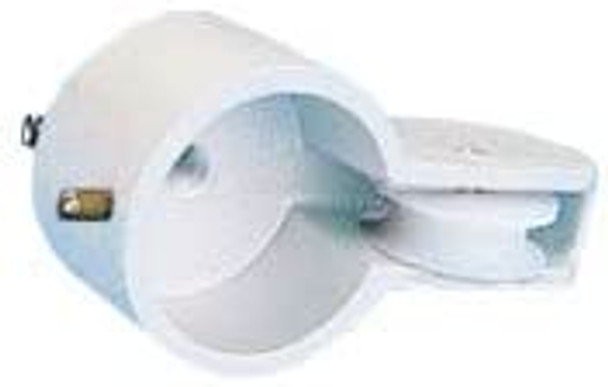

This 2-3/8" single pulley external halyard flagpole truck works on flag poles with an outside diameter of 2-3/8 inches. DON'T measure the inside diameter of the pipe, pole, etc. this flagpole truck slides over the outside of the flagpole.
This 2-3/8 Inch Cast Aluminum External Halyard Stationary Single Pulley Flagpole Truck Can Mount On Top Of A Flag Pole Up To 2-3/8 Inches Top Outside Diameter. Flagpole Truck Is Made in USA.
The pulley is 1-1/2" outside diameter made of cast nylon. Spins on a 1/4" stainless steel axle.
The pulley can handle a maximum halyard diameter of 5/16".
Truck is secured to the top of your outside diameter flagpole of 2-3/8 inches by a stainless steel set screw (size 1/4"-20NC).
You can easily install an ornament on top of this external halyard stationary flagpole truck. Accepts spindle threading of 1/2"-13NC. We will also supply you with a stainless steel set screw (size 10-32) to secure your ornament to the top.
Movement: This truck is stationary.
Works on outside diameter flag poles that are 2-3/8"
Part Numbers: 340069
For External Halyard Poles • Cap Style • Stationary • Single Pulley
• Construction: cast aluminum
• Pulley: 1-1/2" outside diameter cast nylon on 1/4" stainless steel axle
• Max halyard diameter: 5/16"
• Truck: secured by 3 stainless steel set screw (size 1/4"-20NC)
• Ornaments: accepts spindle threading of 1/2"-13NC. Secured by 1 stainless steel pan head screw (size 10-32)
We only stock the silver color. All other colors are special order and take about 3 weeks to get. We paint them once you place the order.
